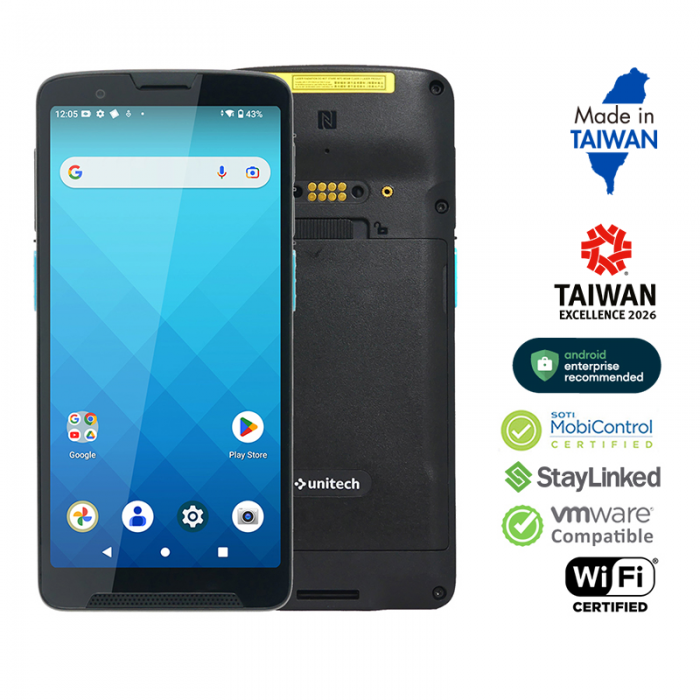

Unitech EA660 Wi-Fi
Enterprise Mobile Computer
Wi-Fi 6E｜6” Gorilla® Glass Victus® & 630nits display｜12m Barcode Reading Distance
Featuring an advanced Android 15 operating system and Wi-Fi 6E wireless communication, the EA660 offers real-time data collection, a seamless working experience, and enhances stock management efficiency in industries such as retail, hospitality, logistics, and healthcare.
Features
• Android 15 OS with GMS & AER Certification
• Wireless Communication: Wi-Fi 6E
• All-In-One functionality: 2D Imager, NFC, 5MP front camera, and 16MP rear camera
• Rugged: Corning® Gorilla® Glass Victus® touch display, IP65 & IP68 rated, and 1.5M drop (1.8M with boot case)
• Premier barcode reading distance: Up to 12M for long-range scanning efficiency (Optional engine)
• Advanced laser aiming performance: Sharp red crosshair for superior visibility in bright sunlight (Optional engine)
• Long-lasting removable 5000mAh UL certified smart battery
• Support unitech software solutions, SDKs, MoboLink, and MDM solutions
Powered by Android 15 OS with GMS & AER Certified
The EA660 is a 6-inch Android 15 enterprise mobile computer equipped with an advanced 64-bit Octa Cores CPU capable of reaching speeds up to 2.4 GHz. It effortlessly handles demanding tasks while ensuring smooth multitasking. With the distinction of Google Certification, encompassing Google Mobile Service (GMS) and Android Enterprise Recommended (AER) endorsement, the dual certification assures a secure and efficient business environment.
Sunlight Readable Display
The EA660 has a sunlight-readable, high brightness (630 nits) display that responds to touch commands even with gloves and supports wet-touch mode. Its touch display features Gorilla Glass 7 (Victus), which provides twice the drop resistance height compared to the Gorilla Glass 5 used in the EA630 Plus, resulting in even better rugged performance.
Seamless and Connectivity via Wireless Communication
Enhanced by the latest Wi-Fi 6E technology, the EA660 offers unprecedented wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands for extensive coverage and blazing-fast internet speeds. With fast roaming, Bluetooth® 5.2 for real-time data collection, and DBS (Dual-Band Simultaneous) technology supporting simultaneous transmissions over both 2.4GHz and 5GHz frequencies, it ensures a more reliable and efficient network performance. This setup allows users to scan items and instantly connect to the backend system to find out the quantity in stock or make an online order for customers. The EA660 delivers a seamless work experience and improves productivity for various applications, making faster downloads and uploads at users’ fingertips on the most reliable networks for your business.
Support ARCore Technology
The EA660 enterprise mobile computer supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The EA660 enhances the CPU and the quality of both the camera and motion sensors, giving users stable performance to handle everything.
ARCore transforms the way people work: it helps locate and identify elements in warehouse management, enables on-the-job training during production processes, and provides precise details of risky areas to increase vigilance and reduce accidents in field service applications.
Durable at Its Best
The EA660 delivers outstanding industrial durability with simultaneous IP65 and IP68 ratings. The IP65 rating ensures protection against dust and low-pressure water jets, while the IP68 rating guarantees dustproofing and the ability to withstand continuous immersion in water for up to 60 minutes at a depth of 1M. Additionally, the device is drop-resistant from 1.5M (1.8M with a boot case), ensuring reliable performance in challenging environments. Perfectly suited for retail, transportation, logistics, manufacturing, and more, the EA660 is designed to enhance data collection, management, and traceability with maximum efficiency.
Optical Character Recognition (OCR)
EA660 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.
- The Airline Ground Services｜Read ID numbers from passports
- Manufacturing｜Read vehicle registration numbers and electronic chips
- Logistics & Retail｜Read lot numbers printed on the package
SmartPA: Better Audio Output
SmartPA (Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit / temperature damage, providing seamless communication between coworkers to achieve productivity.
Effortlessly Process Payments with Softpay
The Unitech EA660 offers support for the Softpay softPOS application, providing a unique mobile point-of-sale solution. This empowers store staff to assist customers on the shop floor and process payments anywhere within the store, eliminating the need for traditional cashier counters. By simply downloading the Softpay solution onto your existing EA660 device, it transforms into a versatile contactless payment terminal. Over time, this innovation allows users to reduce the number of conventional checkout counters in their stores, resulting in a more streamlined and seamless customer experience.
* Learn more about Softpay: https://softpay.io/
Associated Press News Report
Boosting Retail with Free OS Upgrades and Extended Battery Life
We are deeply grateful to the Associated Press (AP) News for their coverage and spotlight on our latest innovation, the EA660 enterprise mobile computer, designed to meet the unique demands of the dynamic retail industry.
View original AP News, please visit: https://reurl.cc/54Agyq
Operation System
- OSAndroid 15 (upgradable to A17)
Support Google ARcore - GMS certifiedGMS certified
- Android EnterpriseAER certified
- CPUQualcomm Snapdragon™ 4490 Processor, 64bits, Octa Cores up to 2.4GHz
- Memory6GB RAM / 8GB RAM (option)
Flash 128GB UFS Flash - SecuritySupports Secure Boot and Verified Boot
- Languages supportEnglish, Simplified Chinese, Traditional Chinese, Japanese,
Spanish, German, French, Italian, Portuguese, Korean and multiple languages - OthersInput Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size6", 18:9 Full-HD+ (2160X1080), color screen, High sunlight visibility- LCD backlight up to 630nits
- Touch PanelCorning® Gorilla® Glass Victus®, Multi-Touch User Interface with Capacitive, stylus (5.5mm) , glove mode (3mm), wet-finger Compatibility
Buttons / Keypad
- Buttons / Keypad5 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button
Camera
- Camera5 MP Front camera,
16 MP Rear with auto-focus function and Flash Light
Indicator Type
- TypeLED, Speaker, Vibrator
Symbologies
- 1D BarcodesUPC/EAN, GS1-128 , Code128, Code 39, Code 93, , Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar
- 2D BarcodesPDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GS1 Composite
- PostalUS Postnet, US Planet, UK Postal, Japanese Postal, Australian Postal, Netherlands (KIX)/ Dutch Postal, USPS 4CB/ One Code/ Intelligent Mail/ UPU FICS Postal
- OCROCR-A, OCR-B, E13B (MICR)
RFID
- HF RFIDSupport HF/NFC
Frequency 13.56Mhz
Support ISO14443-4 (Type A, Type B), ISO15693, Mifare, Felica(ISO/IEC18092) compliance
I/O Interfaces
- USBUSB 3.1 (type-C) support USB OTG, DRP, DRD, Type C
Ethernet/USB-Host via cradle - OTGYes, over USB Type-C
- POGO PINPogoPin backside: Support Gun-grip, UHF reader
PogoPin bottom: Charging via cradle - Expansion SlotMicroSD, up to 1TB
- AudioOne speaker ( up to 104 dB @ 4kHz at 10cm), One receiver,
Dual noise-cancelling microphones, Smart PA
Power Source
- Main battery3.87V, 5000mAh UL certified smart battery
Support Warm SWAP
Communication
- Bluetooth®Bluetooth® 5.2
- WLANWi-Fi 6E (2.4GHz & 5 GHz & 6 GHz)
IEEE 802.11 a/b/g/n/ac/ax/d/e/h/i/k/r/v (MU-MIMO 2X2)
Supports Dual Band Simultaneous (DBS) and Fast Roaming (802.11r with PMKID caching)
Security WPA3, WPA2, WPA, WEP, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, Wi-Fi CERTIFIED™ - SensorsGyroscope,G-sensor, E-Compass,Light & Proximity Sensor
Software
- MDM SoftwareSOTI, VMware and MoboLink
Enclosure
- Dimensions ( W x H x D )162.9mm x 77mm x 14.9mm
- Weight270g ± 1.5% (with battery)*
*The weight will vary depending on the configuration.
Durability
- Drop Specification1.5m drops to concrete per MIL-STD-810H
1.8m with boot case - SealingIP65 & IP68
- Tumble test0.5m tumbles for 300 cycles / 600 drops for EA660
1m tumbles for 500 cycles / 1000 drops for EA660 with boot case
Environmental
- Operating temperature-20°C to 55°C
- Storage temperature-40°C to 70°C (without battery)
- Charging temperature0°C to 45°C
- Relative Humidity5% ~ 95% (Non-Condensing)
Accessories
- Accessories■ USB 3.0 type-C cable for terminal & 1-slot cradle (PN#1550-905908G)
■ Quick charge Adaptor with US plug for terminal & 1-slot cradle (PN#1010-900073G)
■ Quick charge Adaptor with EU plug for terminal & 1-slot cradle (PN#1010-900074G)
■ hand strap (PN#5400-900052G)
■ 1 Fixed Arm, 2 Screws for Hand Strap (PN# 5400-900051G)
■ Boot case (PN#3210-900040G)
■ 9H glass screen protector ( PN#5400-900062G, 10pcs with Packing )
■ Battery 3.87V 5000mAh (PN#1400-900074G)
■ Stylus ( 5.5mm #386534G)
■ Coiled strap (PN# 383642G)
■ Gun grip (PN# 5500-900108G)
■ Wrist Lanyard (PN#385892G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN# RP902-33E8S0G (EU) / RP902-43A8S0G (US) / RP902-43F8S0G (JP)
■ Single Slot Charging Cradle *(PN#5000-900129G)
■ Single Slot USB Cradle *(PN#5000-900130G)
■ Single Slot Ethernet Cradle *(PN#5000-900131G)
* Use USB Cable & Power Adapter from EA660
■ 5-Slot Terminal Charging Cradle(PSU Only) (PN#5000-900132G)
■ 5-Slot Ethernet Cradle(PSU Only) (PN#5000-900134G)
■ 4-Terminal+ 4-battery Charging Cradle(PSU Only) (PN#5000-900133G)
■ 4-slot battery charger(PSU Only) (PN#5100-900037G)
■ Power supply for Multi-Slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ 3-Pin Power Cord(EU) PN#1550-602333G
■ 3-Pin Power Cord(US) PN#1010-601551G
■ EA660 docking station (PSU Only) (PN#5000-900142G)
■ 5V/6A Power supply for Docking station (PN#1010-900043G)
■ Vehicle cradle (PN#5000-66C0001G)
What comes in the box
- The standard package contents■ EA660 Terminal
■ Battery
■ USB 3.0 Cable (Type C)
■ Adaptor (US or EU plug)
(*Not available in EU) - The basic package contents■ EA660 Terminal
■ Battery
■ USB 3.0 Cable (Type C)
Regulatory Approvals
- Regulatory ApprovalsCE, UKCA, FCC, IC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, BQB, N-Mark
Warranty
- Hardware Warranty12 months
- StatementThis product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
