Unitech MS650
Bluetooth CCD Ring Scanner
MS650 is a compact, lightweight and ergonomic tool which is designed to streamline the workflow for a wide range of applications such as warehouse, logistics and inventory management.
MS650 is a compact, lightweight and ergonomic tool which is designed to streamline the workflow for a wide range of applications such as warehouse, logistics and inventory management.

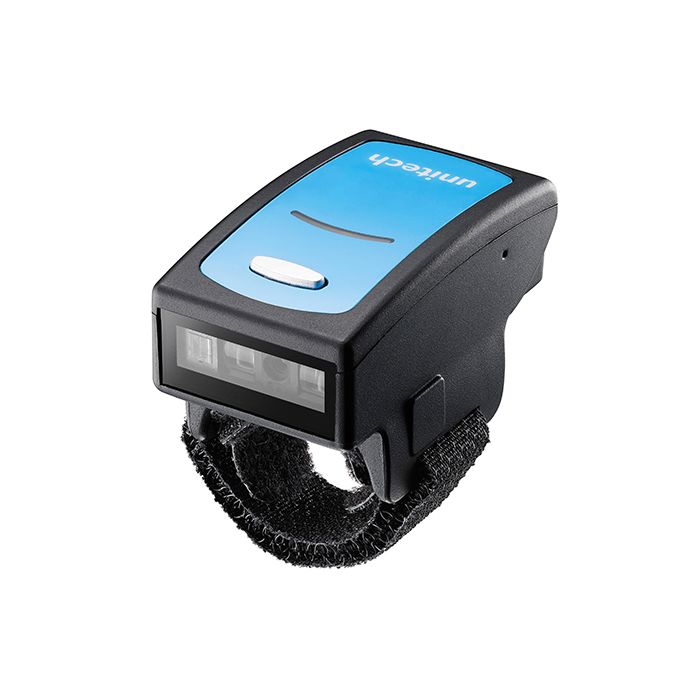

The MS650 Ring Scanner is an ultra compact Bluetooth barcode scanner, allowing you to wear it on your finger to keep both hands free for movement scanning.
Features
• Lightweight and unique wearable ring design
• Available to read 1D barcodes
• Flexibility wireless design with 10M operation range
• Rugged and durable design with IP42 and 1.8m drops
• Easily pair to smart phones and tablets ( Including iOS/ Android devices)
• Available to facilitate a data transfer from scanner to computer via USB port
• Full Shift Battery Life: 10 Hours
Compact Wearable Ring Scanner
The unique trap design of MS650 delivers the convenience for the users , it can be worn on the back of the fingers with a lightweight size that workers can keep both hands free for movement scanning. This device enhances the flexible and comfortable for users while doing data collections as well as maintaining optimal functionality. With the wearable design, users can reduce the accidental drops which provides the highly efficient way.
Superior Readability on LCD Screens
The MS650 has capability to scan 1D barcodes on the LCD screen
surface is reflective and paper in any orientation and it can automatically capture barcodes within its field of view in any lighting conditions from darkness to direct sunlight (70,000 lux). The MS650 gives your workforce the on-screen barcode readability which is suitable to use in point of sale, access control management applications. Featuring the high-speed decoder paired with an aggressive scan engine, the MS650 wireless ring barcode scanner delivers great performance up to 400 scans per second as well as capturing 1D barcode data with a 4 mil resolution and a scanning width up to 130mm. Furthermore, it has an IP42 rating for dust and water resistance as well as a 1.5 meter drop spec that provides superior durability and reliability. Combining high performance and compact design, MS650 gives mobile worker conveniently and safely while on the go.
Data Protection Accountability
With the Bluetooth® HID interface of wireless Bluetooth® 4.1 technology, MS650 is easy to pair with your smart phone and tablets (including iOS or android system) without complex setting. Moreover, the wireless Bluetooth® 4.1 support AES 128-bit encryption to protect data against unauthorised access and effectively avoids interferences by utilizing 24-bit CRC surveillance while data is being transmitted from MS650 ring scanner to the host.
Flexible Wireless Connections
Also, the MS650 delivers the flexibility with the 10 meters operating range from the host that helps users to improve efficiency in mobile work place. It provides the convenience of wireless technology with the simplicity of a single touch button design which makes barcode data collection simple and reliable for all users. In addition, the MS650 can be utilized with an auto mode that ensures no data is lost while it is out of range of the wireless signal, also upload the data to the back-end system with a simple setting, allowing users to complete their tasks without interruption. In addition, the MS650 allows users to facilitate a data transfer and charge the internal Lithium-Ion battery by utilizing a standard USB port. With an ergonomic and compact design, the MS650 wireless ring barcode scanner delivers users powerful way to complete data collection tasks.
Optical & Performance
- SensorLinear Image Sensor
- Ambient Light70,000 Lux (Sunlight)
- Printing Contrast Scale30%
- Depth of FieldLabel / DOF │ near │ far
Code 39, 4mil │50mm │70mm
Code 39, 5mil │45mm │ 95mm
Code 39, 10mil │40mm │190mm
Code 39, 15mil │ 55mm │265mm
UPC/EAN, 13mil │ 50mm │ 225mm
Communication
- Host Interface supportedBluetooth® 4.1HID (HID Keyboard Device)
USB HID (HID Keyboard Device)
USB VCP (Virtual COM Device)
Batch Mode (Mass Storage Device)
Mechanical
- DimensionW29 x L46.5 x H27 mm
- Weight20.5g (including Velcro strap)
Symbologies
- 1D BarcodesUPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Electrical
- IndicatorLED, Buzzer
Environmental
- ESD ProtectionFunctional after 4KV contact, 8KV Air discharge
- Mechanical Shock1.5M onto concrete (scanner only)
- Operating Temperature0°C to 50°C
- Storage Temperature-20°C to 60°C
- Relative Humidity95% non-condensing
- IP RatingIP42
