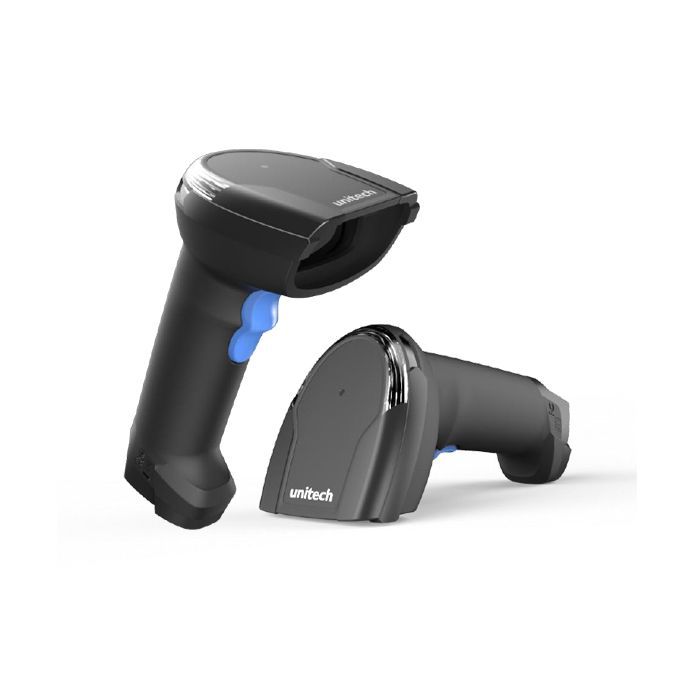

Unitech MS851B
Bluetooth Laser Scanner
The MS851B wireless barcode scanner optimizes data capture with its powerful laser scan engine.
The MS851B wireless barcode scanner optimizes data capture with its powerful laser scan engine.
Combining mobility wireless design and durability at an affordable price, MS851B wireless laser scanner is ideal for a broad range of market applications such as warehouse, logistics, and manufacturing solutions.
Features
• Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)
• Wireless transmission range up to 100m in the line of open sight.
• High-Speed data capture performance: up to 104 scans/sec
• Long battery life up to 30 hours per a fully charged battery
• Durable design: IP42 and 2.1m drop spec
• Auto Bluetooth pairing / Auto switch between Trigger & Presentation mode with cradle
High-Speed Laser Scanning Performance
Featuring laser scanning technology, the MS851B has the automatic scanning ability with a scan rate of up to 104 scans per second. It also has the ability to capture long range 1D barcodes, even damaged or poorly printed barcodes. This device enhances workflow efficiency at an affordable price.
Move without Restrictions
The MS851B supports Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS851B pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.
Flexibility with Cradle Accessory
This MS851B wireless scanner has a cradle accessory that supports auto Bluetooth® pairing and it has the ability to switch between trigger or presentation mode automatically. When it is out of range reading in Auto Mode, the scanned data will be saved into the MS851B memory buffer automatically and transmit to the host when back to the wireless coverage. Moreover, MS851B can be set to batch mode reading, all the scanned data will be stored in a memory buffer and upload to your devices at your own convenience.
Compact but Durable
While sustaining a 2.1-meter drop to concrete, MS852B+ incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability. This scanner can be used in the most practical way depending on the long-range scanning task in various solutions in retail and inventory applications.
System
- Memory7.5MB (590,000 barcodes)
- KeyTrigger Key
Optical & Performance
- Sensor1280 X 800 global shutter
- Aiming ElementRed laser
- IlluminationWhite LED (exempt risk group)
- Ambient Light100,000 Lux (Sunlight)
- Skew Angle±60°
- Pitch Angle Sensor±60°
- Roll Angle0 - 360°
- Optical Resolution1D 3mil/ 0.075mm
- Printing Contrast ScaleMinimum 20%
- Depth of Field(DOF PCS=80%)
-------------------------------------------------------SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm
5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm
10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm
20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm
15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm
10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm
6,7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm
15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm
Communication
- RadioBluetooth LE® V4.2
& Bluetooth® 2.1+EDR, Class 1
Dual mode - Wireless Coverage100m ( line of sight)
- ProtocolSerial Port and HID profiles
- Host Interface supportedUSB, RS232
- Memory Buffer7MB for batch mode/ 20KB for auto mode
Mechanical
- Dimension87.8 L x 71.6 W x 177.7 H (mm)
- Weight213g (without cradle)
- Trigger Switch Life10 million times
- Cradle Dimension120.6 L x 88.7 W x 86.0 H (mm)
Symbologies
- 1D BarcodesCodabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar,
UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39 - 2D Barcodes2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet - OCR BarcodesSupport OCR barcodes
- Data FormattingPrefix, Suffix, Code ID, Reformatting Date
Electrical
- IndicatorLED & Beeper & Vibrator
- Battery TypeRechargeable and replaceable battery pack.
- Battery Capacity2850mAh
- Battery Charging time<6.5 hours
- Operating Time>25 hours
Up to 60,000 scans at 1 scan/per second
Environmental
- ESD ProtectionFunctional after 8K Contact and 15K Air
- Mechanical Shock2.1M onto concrete (scanner only)
- Operating Temperature-10°C to 50°C (14°F to 122°F)
- Storage Temperature-40°C to +70°C (-40°F to +158°F)
- Relative Humidity95% non-condensing
- IP RatingIP42
Accessories
- Items
■ USB cable (PN# 1550-905890G)
■ RS232 cable (PN# 1550-905891G)
■ USB type C cable (PN# 1550-905892G)
■ 1-slot charging cradle (PN#5 000-900064G)
■ Battery pack (PN# 1400-900055G)
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, BSMI, VCCI, NCC, TELEC, BQB
What comes in the box
- The standard package contents
■ MS852B+ Scanner with battery
■ Cradle
■ Interface cable
