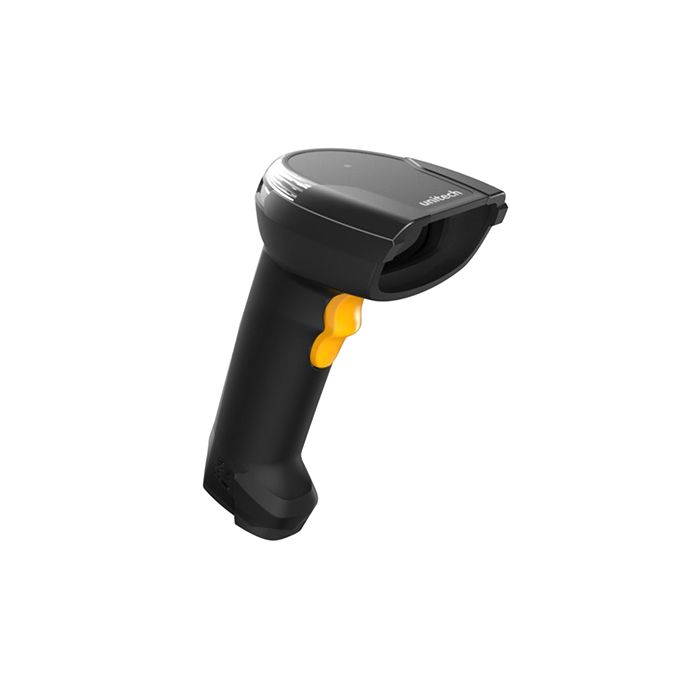

Unitech MS852+
2D Imager Scanner
The MS852+ is a 2D barcode scanner, and it is available to read special OCR, DotCode, and Digimarc barcodes.
Delivering the superior barcode scanning performance, the new unitech MS852+ 2D barcode scanner is suitable for a wide range of markets and applications, from mobile ticketing in airports, point-of-sale system or mobile coupons in retail store to industrial purpose manufacturing scanning.
Features
• Megapixel barcode sensor that enhances the maximum compatibility
• Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
• Support OCR, DotCode, and Digimarc barcodes
• With excellent motion tolerance design suitable to read bar code while moving
• Long lifecycle trigger design: Up to 10,000,000 times.
• Auto-switching function between trigger mode and presentation mode with its stand.
• Ultra-rugged design: IP42 and 2.1m drop spec
• Louder beeper and brighter LED indicators for easily recognizing feedbacks
Increase Productivity with Superior Industrial Barcode Scanner
Specially built for challenging work environment, the MS852+ is built in Megapixel barcode sensor that enhances the maximum compatibility to capture most 1D / 2D barcodes on mobile screens, even damaged or poorly printed barcodes and special barcode symbologies such as OCR on passport, Dot codes on tires or cigarette package, and Digimarc barcode on special retail packages. MS852+ also can automatically populate electronic forms in a single scan from US driver’s licenses or ID card. With its advanced barcode technology and durable design, the MS852+ handheld scanner is a highly reliable tool to increase productivity and efficiency.
Intuitive and User-Friendly
With excellent motion tolerance design, the MS852+ increased scan speed and operational effectiveness even while moving. Featuring an automatically switching function for best customer experience, the handheld device can be detected via the sensor on the stand to switch auto-sensing mode or trigger mode. Equipped with a louder beeper and brighter LED indicators, the MS852+ allows users to recognize the feedbacks easily even in dark environment.
Ultra-Durability
While sustaining a 2.1-meter drop to concrete, MS852+ incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability.
Optical & Performance
- Sensor1280 X 800 global shutter
- Aiming ElementRed laser
- IlluminationWhite LED (exempt risk group)
- Ambient Light100,000 Lux (Sunlight)
- Skew Angle±60°
- Pitch Angle Sensor±60°
- Roll Angle0 - 360°
- Optical Resolution1D 3mil/ 0.075mm
- Printing Contrast ScaleMinimum 20%
- Depth of Field(DOF PCS=80%)
-------------------------------------------------------SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm
5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm
10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm
20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm
15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm
10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm
6,7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm
15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm
Communication
- RadioCorded
- Host Interface supportedUSB / RS232
Mechanical
- Dimension87.8 L x 71.6 W x 177.7 H (mm)
- Weight165g without cable
- Trigger Switch Life10 million times
Symbologies
- 1D BarcodesCodabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar,
UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39 - 2D Barcodes2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet - OCR BarcodesSupport OCR barcodes
Electrical
- Operation Voltage4 VDC to 5.5 VDC
- Current ConsumptionOperating: 252mA
Standby: 77mA - IndicatorBuzzer, LED
Environmental
- ESD ProtectionFunctional after 8K Contact and 15K Air
- Mechanical Shock2.1M onto concrete (scanner only)
- Operating Temperature-10°C to 50°C (14°F to 122°F)
- Storage Temperature-40°C to +70°C (-40°F to +158°F)
- Relative Humidity95% non-condensing
- IP RatingIP42
Accessories
- Items
■ Standard Hands Free Stand (Optional) )(PN#5200-900009G)
■ Auto Sensing Hands Free Stand (Optional)(PN#5200-900010G)
■ RS232 Cable (PN#1550-900060G)
■ USB Cable (PN#1550-900127G)
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, BSMI, VCCI
What comes in the box
- The standard package contents
■ MS852+ Scanner
■ Interface cable
