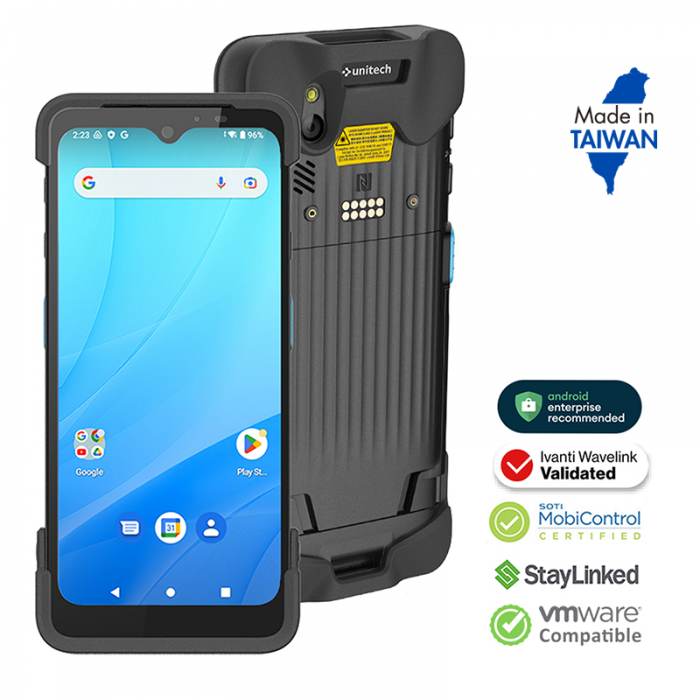

Unitech PA768 Wi-Fi
6.3-inch Rugged AI Touch Computer
Wi-Fi 6E｜Longevity 6490 Processor | 10m Reading Distance｜Hot Swappable 5100mAh UL certified Battery
Unitech is thrilled to present its latest innovation, the PA768 rugged mobile computer (Wi-Fi version), designed to provide dependable and efficient mobile computing for indoor warehousing operations. Boasting high-speed and low-latency data transfer capabilities with Wi-Fi 6E technology, the PA768 ensures fast and reliable information access for maximum user benefit. With its durable and ergonomic design, the PA768 is the ideal solution for streamlining warehouse operations and increasing productivity.
Features
• Android 14 OS with GMS & AER certified
• Support Wi-Fi 6E : 2.4 and 5 GHz frequency as well as the 6GHz band
• Multi-Scan function: Available to read 10 barcodes at one time
• Premier barcode reading distance : up to 10 m
• Superior barcode engine : 1D/ 2D/ DPM (7mil) / DOT code/ barcodes on screens/ OCR
• 1.5M drop-resistant housing (1.8M with bumper)
• IP65 & IP68 heavy-duty protection against water and dust
• True Hot-swap UL certified battery design without downtime
• Support MDM Software Solutions and utilities such as VMware, SOTI, Ivanti Wavelink, and MoboLink.
Powered by Android 14 OS with GMS & AER Certified
• 6.3 inch (20:9) Android 14 rugged mobile computer with Split Screen function
• Advanced 64-bit Octa Cores CPU up to 2.7 GHz
• Google Certification: Google Mobile Service（GMS）/ Android Enterprise Recommended (AER)
Outstanding Long Range Barcode Reading Technology

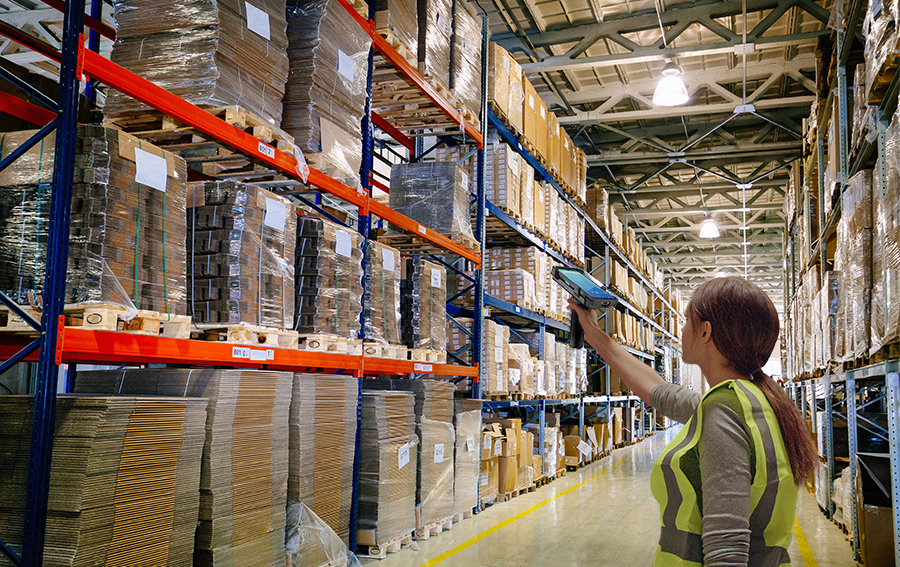

Utilizing a premier 2D barcode scanning technologies, the PA768 rugged touch computer enables barcode reading at distances up to 10m* with Wi-Fi 6E connectivity. It delivers a perfect solution for the warehousing environment that users can enjoy the high performance of barcode reading even from a short or a long distance and optimize work efficiency.
*Optional Middle range engine support read range up to 10 meters.
Support ARCore Technology
The PA768 rugged touch computer supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The PA768 enhances the CPU and built in the quality of both the camera and the motion sensors, it gives users stable performance to handle everything.
The ARCore technology transforms the way people work that helps to locate and identify the elements in warehouse management, allows training for the user while executing the production processes, and precise details of the areas at risk allow for increased vigilance limiting accidents in field service applications.
Reliability at its best
The PA768 also comes with the GMS certified that makes your toughest workdays easier. Reaching IP65 & IP68 enterprise protection and withstanding 1.8M drop makes PA768 a perfect tool to maximize data collection, management, and traceability in nearly every practice of transportation & logistics, field service, manufacturing, and more!
Operation System
- OSAndroid 14 (upgradable to Android 16)
Support Google ARcore - GMS certifiedGMS certified
- Android EnterpriseAER certified
- CPUQualcomm Snapdragon™ 6490 Processor, 64bits, Octa Cores up to 2.7GHz
- AI6th Gen Qualcomm AI Engine
- MemoryRAM 6GB
Flash 64GB UFS Flash (128GB option) - SecuritySupports Secure Boot and Verified Boot
- Languages supportEnglish, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- OthersInput Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size6.3”, 20:9 Full-HD+ (2340X1080), High Resolution color Display
High sunlight visibility- LCD backlight up to 500nits - Touch PanelGorilla Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove (thickness ≤ 4mm), wet-finger Compatibility
Buttons / Keypad
- Buttons / Keypad6 keys- Programmable function button; dual dedicated scan buttons; volume up & volume down buttons; on/off button
Camera
- Camera5 MP Front camera,
16 MP Rear Camera with LED flash and auto-focus function,
Support Google ARcore
Indicator Type
- TypeLED, Speaker, Vibrator
Symbologies
- 1D BarcodesCodabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of
5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF),
EAN-UCC Emulation, GS1 Data Bar, Trioptic Code 93 - 2D BarcodesCodablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code, GS1 Composite, MicroQR code
- PostalAustralian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
- OCROCR-A, OCR-B, E13B (MICR)
RFID
- UHF RFIDUHF gun grip (see RG768)
- HF RFIDSupport HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare,
Felica(ISO/IEC18092)
I/O Interfaces
- USBUSB 3.1 Type-C, support fast charging
Support DisplayPort Alt Mode by USB cable, dongle or USB-C of Ethernet cradle - OTGYes, over USB Type-C
- POGO PINBottom pogo pin for cradles, rear pogo pin for gun grips
- SIM SlotDual nano SIM Slot
- Expansion SlotMicroSD, up to 1 TB
- AudioOne 1.5W output speaker with SmartPA (100 dB at 10cm), One receiver, Dual-Microphone support noise cancellation
Power Source
- Main batteryHot Swappable 5100mAh UL certified smart battery / battery with cover in one piece
- Extended battery7700mAh / UL certified battery with cover in one piece (optional)
- Hot SwapKeeps applications active up to 1 minute
Communication
- Bluetooth®Bluetooth® 5.2 , BLE 5, Class 1.5
- WLANWi-Fi 6E (802.11ax), 2.4GHz & 5GHz & 6GHz, support
Dual-Band Simultaneous (DBS)
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w/mc/ax (2x2 MU-MIMO)
Security WPA3, WPA2, WPA & WEP - SensorsGyroscope, G-sensor, E-compass, Light & Proximity Sensor
Software
- MDM SoftwareSOTI, VMware, 42Gears, and MoboLink
Enclosure
- Dimensions ( W x H x D )167mm x 75.5mm x 17mm
- Weight297 g (with bumper & standard battery)
Durability
- Drop Specification1.8m drops with bumper to plywood over concrete at room temperature of 25°C per MIL-STD 810H
- SealingIP65 & IP68 per IEC 60529
- Tumble test0.5m tumbles for 300 cycles / 600 drops
Environmental
- Operating temperature-20°C to 55°C (-4°F to 131°F)
- Storage temperature-40°C to 70°C (-40°F to 158°F), without battery
- Charging temperature0°C to 45°C (32°F to 113°F)
- Relative Humidity5% ~ 95% (Non-Condensing)
Accessories
- Accessories■ USB 3.0 Type-C Cable(Support Fast Charge) (PN#1550-905908G)
■ Fast Charge Adaptor via USB Type-C Cable (PN#1010-900073G US Plug/ #1010-900074G EU Plug)
■ Hand Strap (PN# 5400-900052G)
■ 1 Fixed Arm, 2 Screws for Hand Strap (PN# 5400-900051G)
■ 9H Glass Screen Protector (PN#5400-900053G 10pcs with Packing)
■ Stylus (5.5mm PN#386534G)
■ Coiled Strap (PN# 383642G)
■ Bumper (PN#5400-900059G, 1 Set with Package)
■ Single Slot Charging Cradle*(PN# 5000-900105G, PSU Only)
■ Single Slot USB Cradle*(PN# 55000-900106G, PSU Only)
■ Single Slot Ethernet Cradle*(PN# 5000-900107G, PSU Only)
■ Power Supply in the 1-slot Cradle (PN#1010-900043G)
■ 4-Terminal+ 4-battery Charging Cradle (PN#5000-900109G , PSU Only)
■ 5-Slot Terminal Charging Cradle (PN#5000-900110G, PSU Only)
■ 5-Slot Terminal Ethernet Cradle (PN#5000-900111G, PSU Only)
■ 4-Slot Battery Charger (PN#5100-900034G, PSU Only)
■ Power Supply in the Multi-slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord(US) (PN#1010-601551G)
■ 3-Pin Power Cord(EU) (PN#1550-602333G)
■ 3-Pin Power Cord (UK) (PN#1550-602689G)
■ Power Adapter 5V/3A (EU,UK,US,AU) (PN#1010-085001G)
■ Standard Gun Grip (PN#5500-900102G)
■ Wrist Lanyard (PN#385892G)
■ RG768 UHF RFID Gun Grip (PN# 5500-900103G (US) & PA768 with bumper / PN#5500-900104G (EU) & PA768 with bumper)
■ Standard Battery 5100mAh (PN#1400-900069G)
■ Extend Battery 7700mAh (PN#1400-900072G)
■ Vehicle Cradle (PN# 5000-768001G)
What comes in the box
- The standard package contents■ PA768 Terminal w/ bumper
■ Battery
■ Hand Strap
■ USB 3.0 type C cable
■ Adaptor (US or EU plug) - The basic package contents■ PA768 Terminal w/ bumper
■ Battery
■ Hand Strap
■ USB 3.0 type C cable
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0
Warranty
- Hardware Warranty12 months
- StatementThis product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
